Thermally Stable Polycrystalline(TSP)

The TSP(Thermally Stable Polycrystalline)manufactured by YNW is made of inert binding agent and diamond under high temperature and ultrahigh pressure. We can manufacture different sizes and shapes of TSP(such as Cylindrical, Rectangle, Triangle, Hexagon etc.)

Quantity:

The TSP(Thermally Stable Polycrystalline)manufactured by YNW is made of inert binding agent and diamond under high temperature and ultrahigh pressure. We can manufacture different sizes and shapes of TSP(such as Cylindrical, Cuboid, Triangle, Hexagon etc.)

The TSP can be inserted into kinds of drilling bits, wire drawing dies, cutting tools, reamers, and other wear-resistant components. TSP mining and oil drilling bits are best suited for more abrasive or broken formations in petroleum and geological fields, because it possesses high thermal stability, shock strength and abrasive resistance.

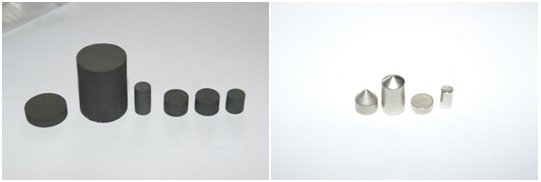

Cylindrical:


Thermally Stable Polycrystalline(TSP)

Product Name

Type

Specification



Thermally Stable Polycrystalline (TSP)

Diameter(mm)

Height(mm)

Angle(°)

YNW-TC1012

1

1.2

120°

YNW-TC1135

1.1

3.5

180°

YNW-TC1235

1.2

3.5

120°

YNW-TC1535

1.5

3.5

180°

YNW-TC1540

1.5

4

180°

YNW-TC1840

1.8

4

180°

YNW-TC2040

2

4

180°

YNW-TC2740

2.7

4

120°

YNW-TC3026

3

2.6

180°

YNW-TC3030

3

3

180°

YNW-TC30501

3

5

120°

YNW-TC30502

3

5

180°

YNW-TC30601

3

6

120°

YNW-TC30602

3

6

180°

YNW-TC3363

3.3

6.3

180°

YNW-TC3550

3.5

5

180°

YNW-TC4040

4

4

180°

YNW-TC40501

4

5

90°

YNW-TC40502

4

5

180°

YNW-TC40601

4

6

120°

YNW-T40602

4

6

180°

YNW-TC5040

5

4

180°

YNW-TC50501

5

5

120°

YNW-TC50502

5

5

180°

YNW-TC5233

5.2

3.3

180°

YNW-TC5321

5.3

2.1

180°

YNW-TC6030

6

3

180°

YNW-TC6040

6

4

180°

YNW-TC60601

6

6

120°

YNW-TC60602

6

6

180°

YNW-TC60801

6

8

120°

YNW-TC60802

6

8

180°

YNW-TC601201

6

12

120°

YNW-TC601202

6

12

180°

YNW-TC6333

6.3

3.3

180°

YNW-TC8026

8

2.6

180°

YNW-TC10022

10

2.2

180°

YNW-TC13025

13

2.5

180°

YNW-TC13030

13

3

180°

YNW-TC13035

13

3.5

180°

YNW-TC18832

18.8

3.2

180°


Features


• High thermal stability. Our TSP products can withstand high temperatures of ~1200 degrees centigrade in a non-oxidizingatmosphere. Moreover, the relative wear resistance of the TSP diamond body remains the same under high temperature conditions.

• Great wear resistance. Because of their performance properties, TSP can also be used in cutting tools, as dressers, as a die material for drawing wire, and for numerous other wear applications.

• Custom sizes, shapes, angles and coatings are available.



Advantage


• Appropriate particle size and morphology, advanced production technology.

Excellent wear resistance and more competitive price.

• We have been in this field for more than 15 years. Our certified quality program ensures the best possible product consistency and uniformity for each of our products.

• Our extensive in-house inventory guarantee that we can provide you with the TSP in time when you need it.


The TSP(Thermally Stable Polycrystalline)manufactured by YNW is made of inert binding agent and diamond under high temperature and ultrahigh pressure. We can manufacture different sizes and shapes of TSP(such as Cylindrical, Cuboid, Triangle, Hexagon etc.)

The TSP can be inserted into kinds of drilling bits, wire drawing dies, cutting tools, reamers, and other wear-resistant components. TSP mining and oil drilling bits are best suited for more abrasive or broken formations in petroleum and geological fields, because it possesses high thermal stability, shock strength and abrasive resistance.


Triangle:


Thermally Stable Polycrystalline(TSP)


Product Name

Type

Specification

Thermally Stable Polycrystalline

(TSP)

Length of Side(mm)

Length of Side(mm)

Length of Side(mm)

Height(mm)

YNW-TT3026

3

3

3

2.6

YNW-TT4026

4

4

4

2.6

YNW-TT4030

4

4

4

3

YNW-TT5030

5

5

5

3

YNW-TT6035

6

6

6

3.5

YNW-TT6040

6

6

6

4

YNW-TT6045

6

6

6

4.5

YNW-TT6050

6

6

6

5

YNW-TT6243

6.2

6.2

6.2

4.3

YNW-TT7020

7

7

7

2


Features


• High thermal stability. Our TSP products can withstand high temperatures of ~1200 degrees centigrade in a non-oxidizingatmosphere. Moreover, the relative wear resistance of the TSP diamond body remains the same under high temperature conditions.

Great wear resistance. Because of their performance properties, TSP can also be used in cutting tools, as dressers, as a die material for drawing wire, and for numerous other wear applications.

Custom sizes, shapes, angles and coatings are available.



Advantage


Appropriate particle size and morphology, advanced production technology.

Excellent wear resistance and more competitive price.

We have been in this field for more than 15 years. Our certified quality program ensures the best possible product consistency and uniformity for each of our products.

Our extensive in-house inventory guarantee that we can provide you with the TSP in time when you need it.


The TSP(Thermally Stable Polycrystalline)manufactured by YNW is made of inert binding agent and diamond under high temperature and ultrahigh pressure. We can manufacture different sizes and shapes of TSP(such as Cylindrical, Cuboid, Triangle, Hexagon etc.)

The TSP can be inserted into kinds of drilling bits, wire drawing dies, cutting tools, reamers, and other wear-resistant components. TSP mining and oil drilling bits are best suited for more abrasive or broken formations in petroleum and geological fields, because it possesses high thermal stability, shock strength and abrasive resistance.

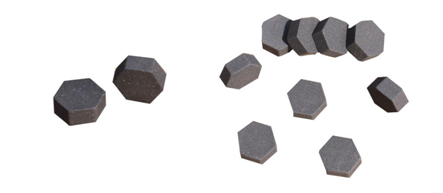

Hexagon:


Thermally Stable Polycrystalline(TSP)


Product Name

Type

Specification

Thermally Stable Polycrystalline

(TSP)

Length of side(mm)

Height(mm)

YNW-TH8035

8

3.5

YNW-TH5235

5.2

3.5


Features


· High thermal stability. Our TSP products can withstand high temperatures of ~1200 degrees centigrade in a non-oxidizingatmosphere. Moreover, the relative wear resistance of the TSP diamond body remains the same under high temperature conditions.

· Great wear resistance. Because of their performance properties, TSP can also be used in cutting tools, as dressers, as a die material for drawing wire, and for numerous other wear applications.

· Custom sizes, shapes, angles and coatings are available.



Advantage


· Appropriate particle size and morphology, advanced production technology.

Excellent wear resistance and more competitive price.

· We have been in this field for more than 15 years. Our certified quality program ensures the best possible product consistency and uniformity for each of our products.

· Our extensive in-house inventory guarantee that we can provide you with the TSP in time when you need it.


The TSP(Thermally Stable Polycrystalline)manufactured by YNW is made of inert binding agent and diamond under high temperature and ultrahigh pressure. We can manufacture different sizes and shapes of TSP(such as Cylindrical, Cuboid, Triangle, Hexagon etc.)

The TSP can be inserted into kinds of drilling bits, wire drawing dies, cutting tools, reamers, and other wear-resistant components. TSP mining and oil drilling bits are best suited for more abrasive or broken formations in petroleum and geological fields, because it possesses high thermal stability, shock strength and abrasive resistance.


Rectangle



Thermally Stable Polycrystalline(TSP)

Product Name

Type

Specification

Thermally Stable Polycrystalline

(TSP)

Length(mm)

Width(mm)

Height(mm)

YNW-TC151515

1.5

1.5

1.5

YNW-TC151530

1.5

1.5

3

YNW-TC151550

1.5

1.5

5

YNW-TC151590

1.5

1.5

9

YNW-TC1515120

1.5

1.5

12

YNW-TC202020

2

2

2

YNW-TC252525

2.5

2.5

2.5

YNW-TC252550

2.5

2.5

5

YNW-TC303030

3

3

3

YNW-TC303040

3

3

4

YNW-TC303050

3

3

5

YNW-TC303060

3

3

6

YNW-TC404025

4

4

2.5

YNW-TC404040

4

4

4

YNW-TC404080

4

4

8

YNW-TC4080200

4

8

20

YNW-TC505050

5

5

5

YNW-TC505080

5

5

8

YNW-TC100100100

10

10

10


Features


High thermal stability. Our TSP products can withstand high temperatures of ~1200 degrees centigrade in a non-oxidizingatmosphere. Moreover, the relative wear resistance of the TSP diamond body remains the same under high temperature conditions.

Great wear resistance. Because of their performance properties, TSP can also be used in cutting tools, as dressers, as a die material for drawing wire, and for numerous other wear applications.

Custom sizes, shapes, angles and coatings are available.



Advantage


Appropriate particle size and morphology, advanced production technology.

Excellent wear resistance and more competitive price.

We have been in this field for more than 15 years. Our certified quality program ensures the best possible product consistency and uniformity for each of our products.

Our extensive in-house inventory guarantee that we can provide you with the TSP in time when you need it.


The TSP(Thermally Stable Polycrystalline)manufactured by YNW is made of inert binding agent and diamond under high temperature and ultrahigh pressure. We can manufacture different sizes and shapes of TSP(such as Cylindrical, Cuboid, Triangle, Hexagon etc.)

The TSP can be inserted into kinds of drilling bits, wire drawing dies, cutting tools, reamers, and other wear-resistant components. TSP mining and oil drilling bits are best suited for more abrasive or broken formations in petroleum and geological fields, because it possesses high thermal stability, shock strength and abrasive resistance.


Special Shape:


Thermally Stable Polycrystalline(TSP)


Product Name

Type

Specification

Thermally Stable Polycrystalline

(TSP)

Cylindroid


Length

(mm)

Width

(mm)

Height

(mm)

Radian

(RAD)

YNW-TS3030100R15

3

3

3

1.5

YNW-TS3050100R15

3

5

10

1.5

YNW-TS3060100R15

3

6

10

1.5

YNW-TS3060100R30

3

6

10

3

YNW-TS505050R25

5

5

5

2.5

YNW-TS505050R25

5

5

5

2.5

Semi-cylinder


Diameter(mm)

Height(mm)

YNW-TS1030

10

3

Sphere

Diameter(mm)

YNW-TS20

2

YNW-TS30

3

YNW-TS40

4

YNW-TS50

5

YNW-TS60

6

YNW-TS70

7

YNW-TS80

8

YNW-TS90

9

YNW-TS100

10


Features


High thermal stability. Our TSP products can withstand high temperatures of ~1200 degrees centigrade in a non-oxidizingatmosphere. Moreover, the relative wear resistance of the TSP diamond body remains the same under high temperature conditions.

Great wear resistance. Because of their performance properties, TSP can also be used in cutting tools, as dressers, as a die material for drawing wire, and for numerous other wear applications.

Custom sizes, shapes, angles and coatings are available.



Advantage


Appropriate particle size and morphology, advanced production technology.

Excellent wear resistance and more competitive price.

We have been in this field for more than 15 years. Our certified quality program ensures the best possible product consistency and uniformity for each of our products.

Our extensive in-house inventory guarantee that we can provide you with the TSP in time when you need it.
