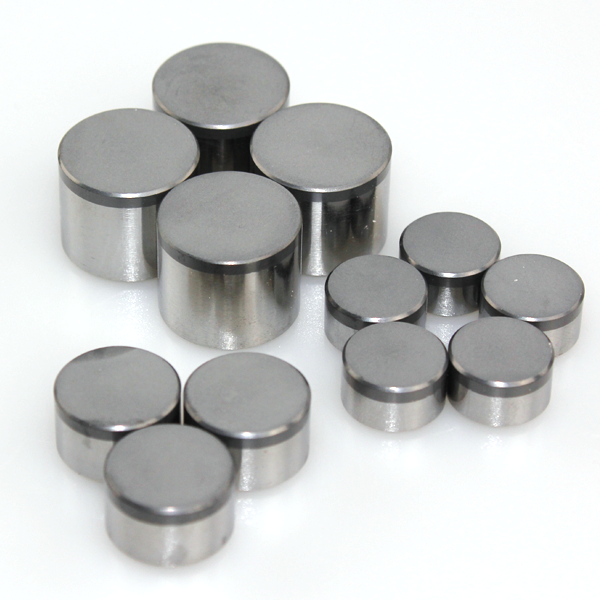

PDC Cutter for Oil & Gas Drilling

Polycrystalline Diamond Composites (PDC) cutters consist of a polycrystalline diamond layer sintered with tungsten carbide substrate under extremely high pressure and high temperature.

Quantity:

PDC Cutter for Oil & Gas Drilling


Polycrystalline Diamond Composites (PDC) cutters  consist of a polycrystalline diamond layer sintered with tungsten carbide substrate under extremely high pressure and high temperature.


YNW -PO Series PDC Cutters are produced with carefully chosen high-quality industrial diamond and tungsten carbide materials, we adopt many types of claw structure of the interface between diamond layer and tungsten carbide substrate, and use the special technological late conditions in order to effectively reduce residual stress of PDC while make the interface combination firmer and more symmetrical.


YNW-PO Series are designed and vastly applied to drill bits in oil & gas drilling industry.



PDC Cutter for Oil & Gas Drilling


Specifications:


PDC Cutter for Oil & Gas Drilling


Product Name

Type

Specification

PDC Cutter for Oil and Gas Drilling

Diameter(D)(mm)

Total Height(H) (mm)

Height of Diamond (mm)

Chamfer of Diamond

Chamfer of Carbide

YNW-PO1308

13.44±0.03

8.0±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PO1313

13.44±0.03

13.2±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PO1610

16.0±0.03

10.0±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PO1613

16.0±0.03

13.2±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PO1913

19.05±0.03

13.2±0.10

2.0-2.5

0.5x45°

0.5x45°

YNW-PO1916

19.05±0.03

16.0±0.10

2.0-2.5

0.5x45°

0.5x45°

YNW-PO1919

19.05±0.03

19.0±0.10

2.0-2.5

0.5x45°

0.5x45°

Note: The standard shape of our PDC cutter is round; other shapes, such as rectangle, triangle, square, semi-circle and so on, can also be custom-made per customers’ requirements.



PDC Cutter for Oil & Gas Drilling


Features:


•  Complete C-C bond between the diamond particles makes the diamond layer have high and wear-resistance and strength.

•  Multi-tooth structure and post process makes the Interface combined with more solid, uniform and has higher heat stability and impact toughness.

•  High abrasion resistance and impact resistance.

•  Various size and type satisfied customers.





Why  Choose Us


•  Correct source, selection, design and pre-treatment of micron diamond powder and tungsten carbide substrate

•  Applying the best post-synthesis processing and treatment conditions to the PDC blank/cutter

•  OEM & ODM accepted. We can produce tools as per your drawing

•  Prompt response. Any of your inquiry to us, we will reply you within in 24 hours.

•  Professional packaging and excellent after-sales service


Quality Control


All of YNW diamond products achieved ISO certification. Our certified quality program ensures the best possible product consistency and uniformity for each of our product.

All the products will be tested before shipping, and we guarantee the free delivery of defect products, to meet 100% customers' satisfaction.
