PDC Cutter for Mining

Polycrystalline Diamond Composites (PDC) cutters consist of a polycrystalline diamond layer sintered with tungsten carbide substrate under extremely high pressure and high temperature.

Quantity:

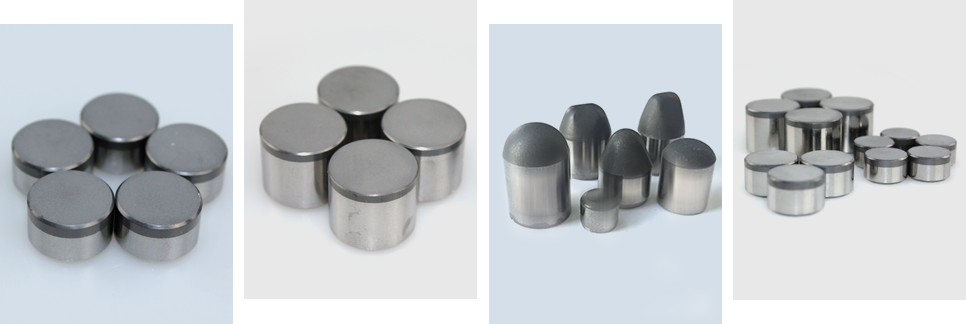

PDC Cutter for Mining



Polycrystalline Diamond Composites (PDC) cutters  consist of a polycrystalline diamond layer sintered with tungsten carbide substrate under extremely high pressure and high temperature.


We offer a range of PDC cutter designed and used in mining drill bits, which named YNW -PM Series. These PDC Cutters exhibit the increased level of durability and performance demanded by aggressive formations and high energy percussive drilling systems.

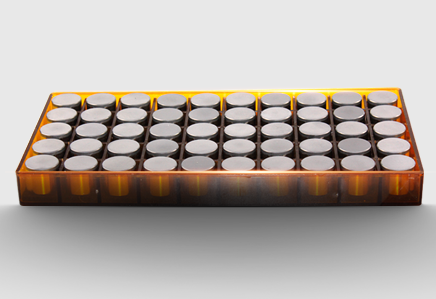

PDC Cutter for Mining


Specifications:


PDC Cutter for Mining



Product
  Name

Type

Specification

PDC   Cutter for Mining

Diameter(D)(mm)

Total   Height(H) (mm)

Height   of Diamond

Chamfer   of Diamond

Chamfer   of Carbide

YNW-PM0804

8.00±0.03

4.5±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PM0808

8.00±0.03

8.0±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PM0810

8.00±0.03

10.0±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PM1004

10.00±0.03

4.5±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PM1008

10.00±0.03

8.0±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PM1010

10.00±0.03

10.0±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PM1304

13.44±0.03

4.5±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PM1308

13.44±0.03

8.0±0.10

2.0-2.5

0.3x45°

0.5x45°

YNW-PM1313

13.44±0.03

13.2±0.10

2.0-2.5

0.3x45°

0.5x45°

Note: The standard shape of our PDC cutter is round; other shapes, such as rectangle, triangle, square, semi-circle and so on, can also be custom-made per customers’ requirements.



PDC Cutter for Mining


Features:


•  Complete C-C bond between the diamond particles makes the diamond layer have high and wear-resistance and strength.

•  Multi-tooth structure and post process makes the Interface combined with more solid, uniform and has higher heat stability and impact toughness.

•  High abrasion resistance and impact resistance.

•  Various size and type satisfied customers.





Why  Choose Us


  Correct source, selection, design and pre-treatment of micron diamond powder and tungsten carbide substrate

•  Applying the best post-synthesis processing and treatment conditions to the PDC blank/cutter

•  OEM & ODM accepted. We can produce tools as per your drawing

•  Prompt response. Any of your inquiry to us, we will reply you within in 24 hours.

•  Professional packaging and excellent after-sales service



Quality Control


All of YNW diamond products achieved ISO certification. Our certified quality program ensures the best possible product consistency and uniformity for each of our product.

All the products will be tested before shipping, and we guarantee the free delivery of defect products, to meet 100% customers' satisfaction.
